代码和运行结果¶

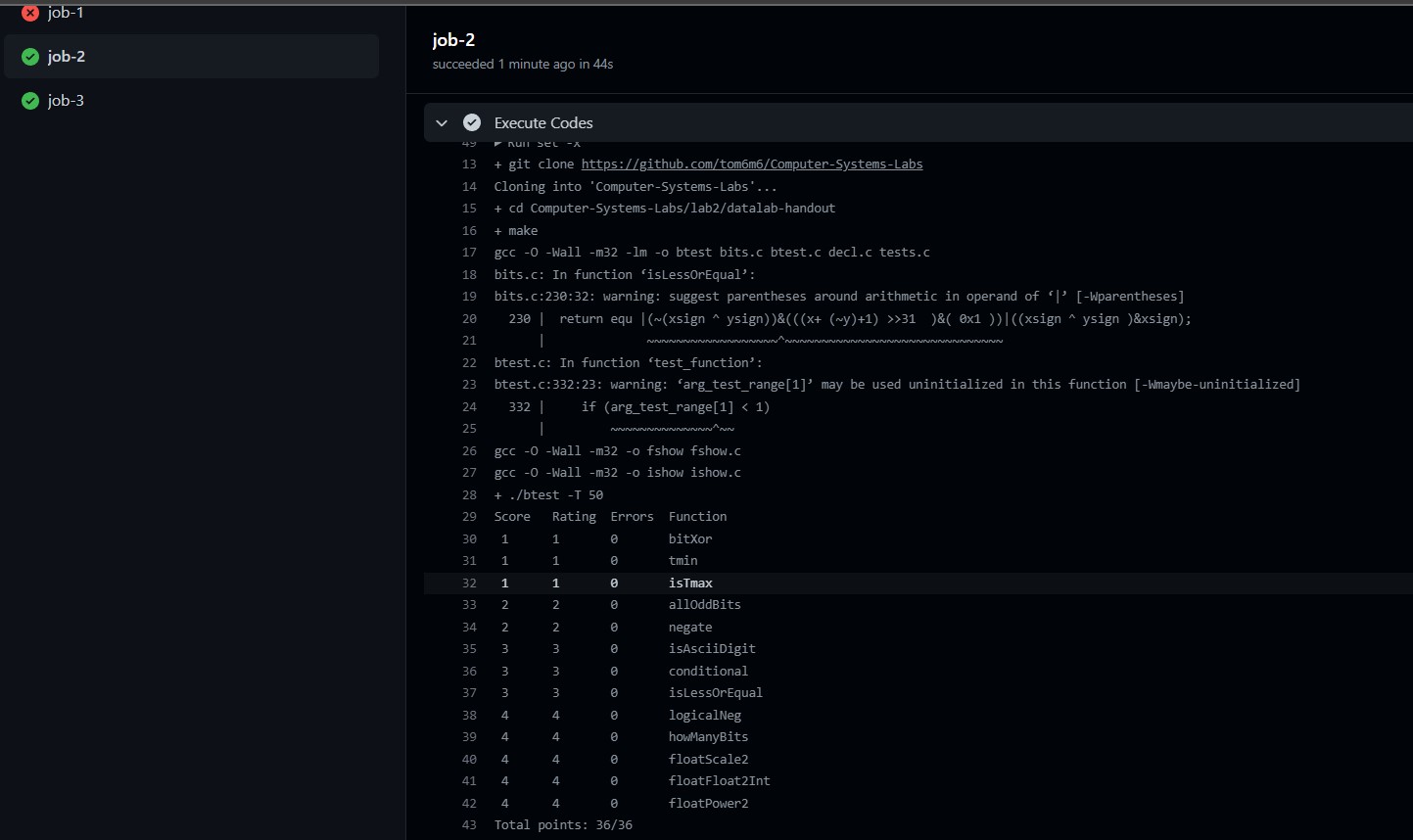

运行结果：
这次实验好像挺模棱两可的，没有布置清楚具体什么时候提交，怎么提交
也没有要求写实验报告
而且是提交到github action上面，只要测试点通过了就能拿满分
具体的实验讲解网上有太多参考资料，此处不赘述了
bits.c版本1¶
/*
* CS:APP Data Lab
*
* <Please put your name and userid here>
*
* bits.c - Source file with your solutions to the Lab.
* This is the file you will hand in to your instructor.
*
* WARNING: Do not include the <stdio.h> header; it confuses the dlc
* compiler. You can still use printf for debugging without including
* <stdio.h>, although you might get a compiler warning. In general,
* it's not good practice to ignore compiler warnings, but in this
* case it's OK.
*/
#if 0
/*
* Instructions to Students:
*
* STEP 1: Read the following instructions carefully.
*/
You will provide your solution to the Data Lab by
editing the collection of functions in this source file.
INTEGER CODING RULES:
Replace the "return" statement in each function with one
or more lines of C code that implements the function. Your code
must conform to the following style:
int Funct(arg1, arg2, ...) {
/* brief description of how your implementation works */
int var1 = Expr1;
...
int varM = ExprM;
varJ = ExprJ;
...
varN = ExprN;
return ExprR;
}
Each "Expr" is an expression using ONLY the following:
1. Integer constants 0 through 255 (0xFF), inclusive. You are
not allowed to use big constants such as 0xffffffff.
2. Function arguments and local variables (no global variables).
3. Unary integer operations ! ~
4. Binary integer operations & ^ | + << >>
Some of the problems restrict the set of allowed operators even further.
Each "Expr" may consist of multiple operators. You are not restricted to
one operator per line.
You are expressly forbidden to:
1. Use any control constructs such as if, do, while, for, switch, etc.
2. Define or use any macros.
3. Define any additional functions in this file.
4. Call any functions.
5. Use any other operations, such as &&, ||, -, or ?:
6. Use any form of casting.
7. Use any data type other than int. This implies that you
cannot use arrays, structs, or unions.
You may assume that your machine:
1. Uses 2s complement, 32-bit representations of integers.
2. Performs right shifts arithmetically.
3. Has unpredictable behavior when shifting if the shift amount
is less than 0 or greater than 31.
EXAMPLES OF ACCEPTABLE CODING STYLE:
/*
* pow2plus1 - returns 2^x + 1, where 0 <= x <= 31
*/
int pow2plus1(int x) {
/* exploit ability of shifts to compute powers of 2 */
return (1 << x) + 1;
}
/*
* pow2plus4 - returns 2^x + 4, where 0 <= x <= 31
*/
int pow2plus4(int x) {
/* exploit ability of shifts to compute powers of 2 */
int result = (1 << x);
result += 4;
return result;
}
FLOATING POINT CODING RULES
For the problems that require you to implement floating-point operations,
the coding rules are less strict. You are allowed to use looping and
conditional control. You are allowed to use both ints and unsigneds.
You can use arbitrary integer and unsigned constants. You can use any arithmetic,
logical, or comparison operations on int or unsigned data.
You are expressly forbidden to:
1. Define or use any macros.
2. Define any additional functions in this file.
3. Call any functions.
4. Use any form of casting.
5. Use any data type other than int or unsigned. This means that you
cannot use arrays, structs, or unions.
6. Use any floating point data types, operations, or constants.
NOTES:
1. Use the dlc (data lab checker) compiler (described in the handout) to
check the legality of your solutions.
2. Each function has a maximum number of operations (integer, logical,
or comparison) that you are allowed to use for your implementation
of the function. The max operator count is checked by dlc.
Note that assignment ('=') is not counted; you may use as many of
these as you want without penalty.
3. Use the btest test harness to check your functions for correctness.
4. Use the BDD checker to formally verify your functions
5. The maximum number of ops for each function is given in the
header comment for each function. If there are any inconsistencies
between the maximum ops in the writeup and in this file, consider
this file the authoritative source.
/*
* STEP 2: Modify the following functions according the coding rules.
*
* IMPORTANT. TO AVOID GRADING SURPRISES:
* 1. Use the dlc compiler to check that your solutions conform
* to the coding rules.
* 2. Use the BDD checker to formally verify that your solutions produce
* the correct answers.
*/
#endif
// 1
/*
* bitXor - x^y using only ~ and &
* Example: bitXor(4, 5) = 1
* Legal ops: ~ &
* Max ops: 14
* Rating: 1
*/
int bitXor(int x, int y) {
int res = (~(x & y)) & (~((~x) & (~y)));
return res;
}
/*
* tmin - return minimum two's complement integer
* Legal ops: ! ~ & ^ | + << >>
* Max ops: 4
* Rating: 1
*/
int tmin(void) { return 1 << 31; }
// 2
/*
* isTmax - returns 1 if x is the maximum, two's complement number,
* and 0 otherwise
* Legal ops: ! ~ & ^ | +
* Max ops: 10
* Rating: 1
*/
int isTmax(int x) {
int res = !((~x) ^ (x + 1));
// x为0xffffffff或0x7fffffff的时候,res为1，其他时候为0
int check_full_f = !(~x);
// x为0xffffffff的时候check_full_f为1,其他为0
res = (res & 1) & (!check_full_f & 1);
return res;
}
/*
* allOddBits - return 1 if all odd-numbered bits in word set to 1
* where bits are numbered from 0 (least significant) to 31 (most significant)
* Examples allOddBits(0xFFFFFFFD) = 0, allOddBits(0xAAAAAAAA) = 1
* Legal ops: ! ~ & ^ | + << >>
* Max ops: 12
* Rating: 2
*/
int allOddBits(int x) {
int mask = 0xAA;
mask = (0xAA << 8) + mask;
mask = (mask << 16) + mask;
return !((x & mask) ^ mask);
}
/*
* negate - return -x
* Example: negate(1) = -1.
* Legal ops: ! ~ & ^ | + << >>
* Max ops: 5
* Rating: 2
*/
int negate(int x) { return ~x + 1; }
// 3
/*
* isAsciiDigit - return 1 if 0x30 <= x <= 0x39 (ASCII codes for characters '0'
* to '9') Example: isAsciiDigit(0x35) = 1. isAsciiDigit(0x3a) = 0.
* isAsciiDigit(0x05) = 0.
* Legal ops: ! ~ & ^ | + << >>
* Max ops: 15
* Rating: 3
*/
int isAsciiDigit(int x) {
int sign = 1 << 31;
int lower_bound = 0x30;
int upper_bound = 0x3a;
int minus_lower_bound = ~lower_bound + 1;
int minus_upper_bound = ~upper_bound + 1;
int check_lower = !(((x + minus_lower_bound) & sign) ^ sign);
int check_upper = !(((x + minus_upper_bound) & sign) ^ sign);
return (!check_lower) & check_upper;
}
/*
* conditional - same as x ? y : z
* Example: conditional(2,4,5) = 4
* Legal ops: ! ~ & ^ | + << >>
* Max ops: 16
* Rating: 3
*/
int conditional(int x, int y, int z) {
int select = !(!x);
int mask = ~select + 1;
y = y & mask;
z = z & ~mask;
return y | z;
}
/*
* isLessOrEqual - if x <= y then return 1, else return 0
* Example: isLessOrEqual(4,5) = 1.
* Legal ops: ! ~ & ^ | + << >>
* Max ops: 24
* Rating: 3
*/
int isLessOrEqual(int x, int y) {
int sign = 1 << 31;
int minus_result = x + (~y + 1);
int check_all_zero = !minus_result;
int check_lower = !((minus_result & sign) ^ sign);
int x_sign = (x & sign) ^ sign;
int y_sign = (y & sign) ^ sign;
int check_x_y =
(!x_sign) & !(!y_sign); //检查是否为如下情形x符号为负且y符号为正
int check_y_x =
!(!x_sign) & !y_sign; ////检查是否为如下情形x符号为正且y符号为负
return (check_all_zero | check_lower | check_x_y) & !check_y_x;
}
// 4
/*
* logicalNeg - implement the ! operator, using all of
* the legal operators except !
* Examples: logicalNeg(3) = 0, logicalNeg(0) = 1
* Legal ops: ~ & ^ | + << >>
* Max ops: 12
* Rating: 4
*/
int logicalNeg(int x) {
int negetive_x = ~x + 1;
int check_if_positive = ~(negetive_x >> 31) + 1;
int check_if_negetive = ~(x >> 31) + 1;
return (check_if_negetive | check_if_positive) ^ 1;
}
/* howManyBits - return the minimum number of bits required to represent x in
* two's complement
* Examples: howManyBits(12) = 5
* howManyBits(298) = 10
* howManyBits(-5) = 4
* howManyBits(0) = 1
* howManyBits(-1) = 1
* howManyBits(0x80000000) = 32
* Legal ops: ! ~ & ^ | + << >>
* Max ops: 90
* Rating: 4
*/
int howManyBits(int x) {
int b16, b8, b4, b2, b1, b0;
int sign = x >> 31;
x = (sign & ~x) | (~sign & x);
// 不断缩小范围
b16 = !!(x >> 16) << 4;
x = x >> b16;
b8 = !!(x >> 8) << 3;
x = x >> b8;
b4 = !!(x >> 4) << 2;
x = x >> b4;
b2 = !!(x >> 2) << 1;
x = x >> b2;
b1 = !!(x >> 1);
x = x >> b1;
b0 = x;
return b16 + b8 + b4 + b2 + b1 + b0 + 1;
}
// float
/*
* floatScale2 - Return bit-level equivalent of expression 2*f for
* floating point argument f.
* Both the argument and result are passed as unsigned int's, but
* they are to be interpreted as the bit-level representation of
* single-precision floating point values.
* When argument is NaN, return argument
* Legal ops: Any integer/unsigned operations incl. ||, &&. also if, while
* Max ops: 30
* Rating: 4
*/
unsigned floatScale2(unsigned uf) {
unsigned res;
unsigned sign = uf >> 31;
unsigned exponent = (uf << 1) >> 24;
unsigned significand = (uf << 9) >> 9;
if (!(exponent ^ 0)) {
if (significand >> 22) {
res = ((significand << 10) >> 9) + (((sign << 8) + exponent + 1) << 23);
} else {
res = ((significand << 10) >> 9) + (((sign << 8) + exponent) << 23);
}
} else if (!(exponent ^ 0xff)) {
res = uf;
} else {
exponent = exponent + 1;
res = significand + (((sign << 8) + exponent) << 23);
}
return res;
}
/*
* floatFloat2Int - Return bit-level equivalent of expression (int) f
* for floating point argument f.
* Argument is passed as unsigned int, but
* it is to be interpreted as the bit-level representation of a
* single-precision floating point value.
* Anything out of range (including NaN and infinity) should return
* 0x80000000u.
* Legal ops: Any integer/unsigned operations incl. ||, &&. also if, while
* Max ops: 30
* Rating: 4
*/
int floatFloat2Int(unsigned uf) {
int res;
int sign = uf >> 31;
int exponent = ((uf & 0x7f800000) >> 23) - 127;
int significand = (uf & 0x007fffff) | 0x00800000;
if (exponent > 31 || !(exponent ^ 31)) {
res = 0x80000000u;
} else if (exponent < 0) {
res = 0;
} else if (!(exponent ^ 0)) {
if (sign) {
res = -1;
} else {
res = 1;
}
} else {
if (sign) {
significand = ~(significand + 0x800000) + 1;
} else {
significand = significand + 0x800000;
}
if (exponent > 23 || !(exponent ^ 23)) {
res = significand << (exponent - 23);
} else if (exponent < 23) {
res = significand >> (23 - exponent);
}
}
return res;
}
/*
* floatPower2 - Return bit-level equivalent of the expression 2.0^x
* (2.0 raised to the power x) for any 32-bit integer x.
*
* The unsigned value that is returned should have the identical bit
* representation as the single-precision floating-point number 2.0^x.
* If the result is too small to be represented as a denorm, return
* 0. If too large, return +INF.
*
* Legal ops: Any integer/unsigned operations incl. ||, &&. Also if, while
* Max ops: 30
* Rating: 4
*/
unsigned floatPower2(int x) {
int res;
int sign = 0 << 31;
int exponent;
if (x > 127) {
exponent = 0xff << 23;
res = sign + exponent;
} else if (x < -126) {
res = 0;
} else {
exponent = (x + 127) << 23;
res = sign + exponent;
}
return res;
}
bits.c版本2-我交的版本¶
/*
* CS:APP Data Lab
*
* <Please put your name and userid here>
*
* bits.c - Source file with your solutions to the Lab.
* This is the file you will hand in to your instructor.
*
* WARNING: Do not include the <stdio.h> header; it confuses the dlc
* compiler. You can still use printf for debugging without including
* <stdio.h>, although you might get a compiler warning. In general,
* it's not good practice to ignore compiler warnings, but in this
* case it's OK.
*/
#if 0
/*
* Instructions to Students:
*
* STEP 1: Read the following instructions carefully.
*/
You will provide your solution to the Data Lab by
editing the collection of functions in this source file.
INTEGER CODING RULES:
Replace the "return" statement in each function with one
or more lines of C code that implements the function. Your code
must conform to the following style:
int Funct(arg1, arg2, ...) {
/* brief description of how your implementation works */
int var1 = Expr1;
...
int varM = ExprM;
varJ = ExprJ;
...
varN = ExprN;
return ExprR;
}
Each "Expr" is an expression using ONLY the following:
1. Integer constants 0 through 255 (0xFF), inclusive. You are
not allowed to use big constants such as 0xffffffff.
2. Function arguments and local variables (no global variables).
3. Unary integer operations ! ~
4. Binary integer operations & ^ | + << >>
Some of the problems restrict the set of allowed operators even further.
Each "Expr" may consist of multiple operators. You are not restricted to
one operator per line.
You are expressly forbidden to:
1. Use any control constructs such as if, do, while, for, switch, etc.
2. Define or use any macros.
3. Define any additional functions in this file.
4. Call any functions.
5. Use any other operations, such as &&, ||, -, or ?:
6. Use any form of casting.
7. Use any data type other than int. This implies that you
cannot use arrays, structs, or unions.
You may assume that your machine:
1. Uses 2s complement, 32-bit representations of integers.
2. Performs right shifts arithmetically.
3. Has unpredictable behavior when shifting if the shift amount
is less than 0 or greater than 31.
EXAMPLES OF ACCEPTABLE CODING STYLE:
/*
* pow2plus1 - returns 2^x + 1, where 0 <= x <= 31
*/
int pow2plus1(int x) {
/* exploit ability of shifts to compute powers of 2 */
return (1 << x) + 1;
}
/*
* pow2plus4 - returns 2^x + 4, where 0 <= x <= 31
*/
int pow2plus4(int x) {
/* exploit ability of shifts to compute powers of 2 */
int result = (1 << x);
result += 4;
return result;
}
FLOATING POINT CODING RULES
For the problems that require you to implement floating-point operations,
the coding rules are less strict. You are allowed to use looping and
conditional control. You are allowed to use both ints and unsigneds.
You can use arbitrary integer and unsigned constants. You can use any arithmetic,
logical, or comparison operations on int or unsigned data.
You are expressly forbidden to:
1. Define or use any macros.
2. Define any additional functions in this file.
3. Call any functions.
4. Use any form of casting.
5. Use any data type other than int or unsigned. This means that you
cannot use arrays, structs, or unions.
6. Use any floating point data types, operations, or constants.
NOTES:
1. Use the dlc (data lab checker) compiler (described in the handout) to
check the legality of your solutions.
2. Each function has a maximum number of operations (integer, logical,
or comparison) that you are allowed to use for your implementation
of the function. The max operator count is checked by dlc.
Note that assignment ('=') is not counted; you may use as many of
these as you want without penalty.
3. Use the btest test harness to check your functions for correctness.
4. Use the BDD checker to formally verify your functions
5. The maximum number of ops for each function is given in the
header comment for each function. If there are any inconsistencies
between the maximum ops in the writeup and in this file, consider
this file the authoritative source.
/*
* STEP 2: Modify the following functions according the coding rules.
*
* IMPORTANT. TO AVOID GRADING SURPRISES:
* 1. Use the dlc compiler to check that your solutions conform
* to the coding rules.
* 2. Use the BDD checker to formally verify that your solutions produce
* the correct answers.
*/
#endif
//1
/*
* bitXor - x^y using only ~ and &
* Example: bitXor(4, 5) = 1
* Legal ops: ~ &
* Max ops: 14
* Rating: 1
*/
int bitXor(int x, int y) {
return ~(~x & ~y) & ~(x & y);
}
/*
* tmin - return minimum two's complement integer
* Legal ops: ! ~ & ^ | + << >>
* Max ops: 4
* Rating: 1
*/
int tmin(void) {
return 1 << 31;
}
//2
/*
* isTmax - returns 1 if x is the maximum, two's complement number,
* and 0 otherwise
* Legal ops: ! ~ & ^ | +
* Max ops: 10
* Rating: 1
*/
int isTmax(int x) {
return ! (x ^ 0x7FFFFFFF);
}
/*
* allOddBits - return 1 if all odd-numbered bits in word set to 1
* where bits are numbered from 0 (least significant) to 31 (most significant)
* Examples allOddBits(0xFFFFFFFD) = 0, allOddBits(0xAAAAAAAA) = 1
* Legal ops: ! ~ & ^ | + << >>
* Max ops: 12
* Rating: 2
*/
int allOddBits(int x) {
int m=0xAAAAAAAA;
return ! ( (x & m )^m ) ;
}
/*
* negate - return -x
* Example: negate(1) = -1.
* Legal ops: ! ~ & ^ | + << >>
* Max ops: 5
* Rating: 2
*/
int negate(int x) {
return (~x)+1 ;
}
//3
/*
* isAsciiDigit - return 1 if 0x30 <= x <= 0x39 (ASCII codes for characters '0' to '9')
* Example: isAsciiDigit(0x35) = 1.
* isAsciiDigit(0x3a) = 0.
* isAsciiDigit(0x05) = 0.
* Legal ops: ! ~ & ^ | + << >>
* Max ops: 15
* Rating: 3
*/
int isAsciiDigit(int x) {
int T1= ! ((x >> 1) ^ 0x1C );
int T2= ! ((x >> 3) ^ 0x6 );
return T1|T2;
}
/*
* conditional - same as x ? y : z
* Example: conditional(2,4,5) = 4
* Legal ops: ! ~ & ^ | + << >>
* Max ops: 16
* Rating: 3
*/
int conditional(int x, int y, int z) {
x=!!x;
x= ~x + 1;
return (x & y)|(~x & z) ;
}
/*
* isLessOrEqual - if x <= y then return 1, else return 0
* Example: isLessOrEqual(4,5) = 1.
* Legal ops: ! ~ & ^ | + << >>
* Max ops: 24
* Rating: 3
*/
int isLessOrEqual(int x, int y) {
int xsign= (x >> 31 ) & ( 0x1 );
int ysign= (y >> 31 ) & ( 0x1 );
int equ=!(x ^ y);
return equ |(~(xsign ^ ysign))&(((x+ (~y)+1) >>31 )&( 0x1 ))|((xsign ^ ysign )&xsign);
/*int xsign= (x >> 31 ) & ( 0x1 );
int ysign= (y >> 31 ) & ( 0x1 );
int equ=!(x ^ y);
int con1= equ & (0x1 & ((x + ~y + 1) >> 31));
int con2= xsign & !ysign;
int con3=!(x^y);
return con1 | con2 | con3; */
}
//4
/*
* logicalNeg - implement the ! operator, using all of
* the legal operators except !
* Examples: logicalNeg(3) = 0, logicalNeg(0) = 1
* Legal ops: ~ & ^ | + << >>
* Max ops: 12
* Rating: 4
*/
int logicalNeg(int x) {
int x1_sign = (x >> 31) & 0x1;
int x2_sign = ((~x + 1) >> 31) & 0x1;
return (~x1_sign & 0x1) & (~x2_sign & 0x1);
}
/* howManyBits - return the minimum number of bits required to represent x in
* two's complement
* Examples: howManyBits(12) = 5 1100
* howManyBits(298) = 10
* howManyBits(-5) = 4
* howManyBits(0) = 1
* howManyBits(-1) = 1
* howManyBits(0x80000000) = 32
* Legal ops: ! ~ & ^ | + << >>
* Max ops: 90
* Rating: 4
*/
int howManyBits(int x) {
int sign,b0,b1,b2,b4,b8,b16;
sign=(x >> 31);
x=( sign & ~x) | (~sign & x);
b16=!!(x >> 16) << 4;
x=x >> b16;
b8=!!(x >> 8) << 3;
x=x >> b8;
b4=!!(x >> 4 ) << 2;
x=x >> b4;
b2=!!(x >> 2) << 1;
x=x >> b2;
b1=!!(x >> 1) ;
x=x >> b1;
b0=x;
return b16+b8+b4+b2+b1+b0+1;
}
//float
/*
* floatScale2 - Return bit-level equivalent of expression 2*f for
* floating point argument f.
* Both the argument and result are passed as unsigned int's, but
* they are to be interpreted as the bit-level representation of
* single-precision floating point values.
* When argument is NaN, return argument
* Legal ops: Any integer/unsigned operations incl. ||, &&. also if, while
* Max ops: 30
* Rating: 4
*/
unsigned floatScale2(unsigned uf) {
int exp=(uf & 0x7F800000 ) >> 23;
int frac = uf & 0x7FFFFF;
if(exp==255) return uf;
if(exp==0)return (uf & 0x80000000 )+(exp << 23)+(frac << 1);
return (uf & 0x80000000 )+((exp+1) << 23 )+frac;
}
/*
* floatFloat2Int - Return bit-level equivalent of expression (int) f
* for floating point argument f.
* Argument is passed as unsigned int, but
* it is to be interpreted as the bit-level representation of a
* single-precision floating point value.
* Anything out of range (including NaN and infinity) should return
* 0x80000000u.
* Legal ops: Any integer/unsigned operations incl. ||, &&. also if, while
* Max ops: 30
* Rating: 4
*/
int floatFloat2Int(unsigned uf) {
int exp=(uf & 0x7F800000 ) >> 23;
int bias=127;
if(exp<bias)return 0;
if(exp>=(bias+31))return 0x80000000;
int v=1 << (exp -bias);
int s= (uf >> 31) & 0x1;
if(s)return -v;
return v;
}
/*
* floatPower2 - Return bit-level equivalent of the expression 2.0^x
* (2.0 raised to the power x) for any 32-bit integer x.
*
* The unsigned value that is returned should have the identical bit
* representation as the single-precision floating-point number 2.0^x.
* If the result is too small to be represented as a denorm, return
* 0. If too large, return +INF.
*
* Legal ops: Any integer/unsigned operations incl. ||, &&. Also if, while
* Max ops: 30
* Rating: 4
*/
unsigned floatPower2(int x) {
if (x<-149)return 0;
else if(x<-126)return 1 << (x+149);
else if(x<128)return (x+127)<<23;
else return 0x7F800000;
}
